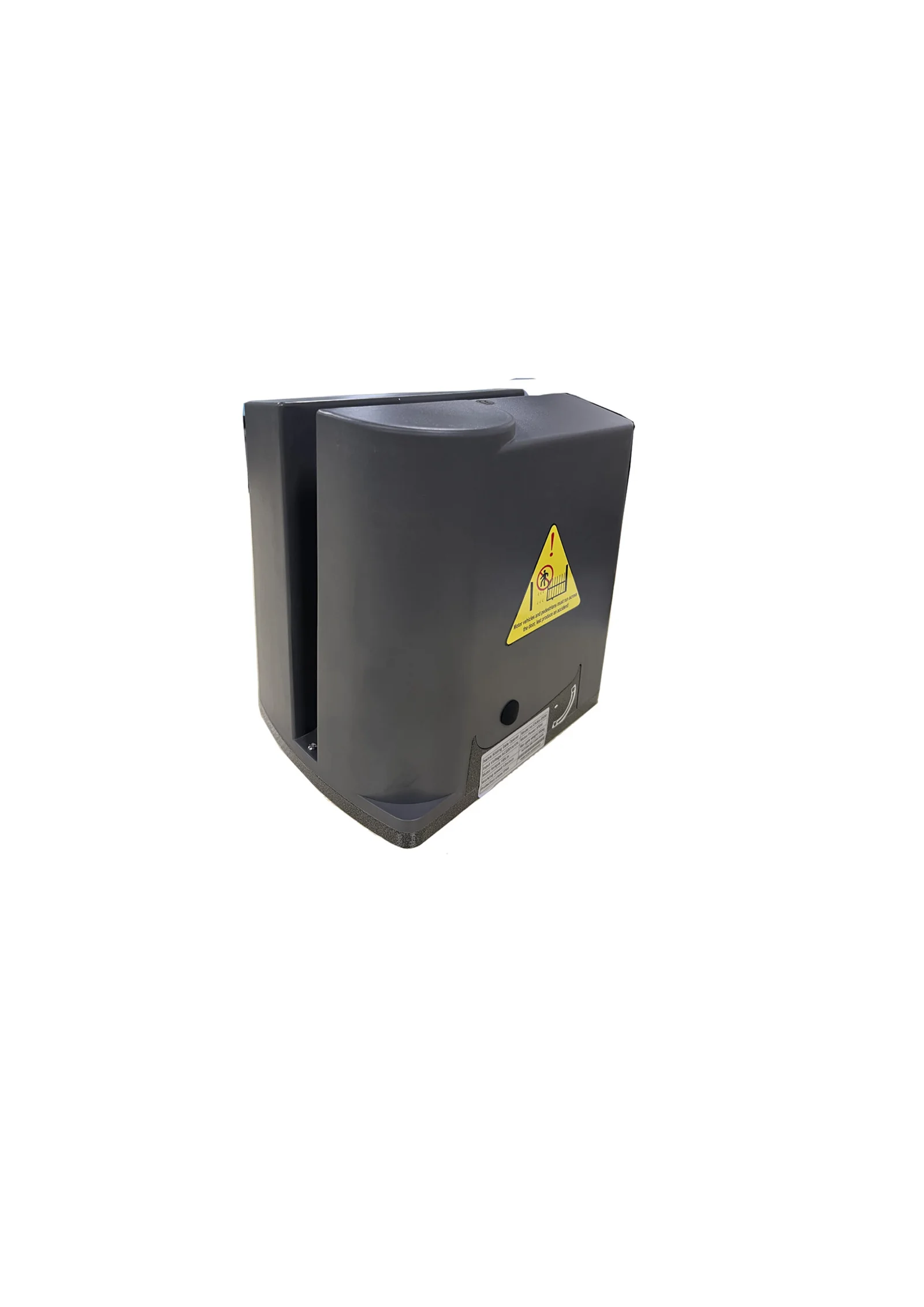

CASA MX
Main Technical Parameters
| Model | CASA-050MX | CASA-080MX | CASA-120MX | CASA-170MX | CASA-200MX |
|---|---|---|---|---|---|
| INPUT POWER | AC SINGLE-PHASE 220V | ||||
| MAX. GATE WEIGHT | 500KG | 800KG | 1200KG | 1700KG | 2000KG |
| MAX. TORQUE | 18NM | 22NM | 35NM | 50NM | 60NM |
| RATED POWER | 370W | 450W | 550W | 750W | 900W |
| PROTECTION CLASS | IP44 | IP44 | IP44 | IP44 | IP44 |
| SPEED (M/MIN) | 12 | 12 | 12 | 12 | 12 |
| TEMPERATURE | -45°C ~ +65°C | -45°C ~ +65°C | -45°C ~ +65°C | -45°C ~ +65°C | -45°C ~ +65°C |
| Noise | ≤56DB | ≤56DB | ≤56DB | ≤56DB | ≤56DB |
Product Features
- AC motor with built-in control unit.
- Soft start and slow stop.
- Auto-close function.
- Manual release design for emergency purpose.
- Provides multiple external expansion interfaces. (Alarm, lamp, photo beam interface etc).
Technical Advantages (Casa- MX)
- 1.Appearance use the most advanced industrial design, using the latest technology to produce the mold, beautiful elegant and high-grade.
- 2.The base is made of high strength aluminum, with good sealing, antisepsis, anti rust.
- 3.With small size, high power, easy installation, safety operation.
- 4.With over heat protection function, in case of burn down the motor.
- 5.Special clutch design, double protection, safe and anti-theft.
- 6.Special circuit design, wide range of voltage, sensitivity of remote controller, long distance, safe and reliable.
- 7.Magnet double limit switch, with micro adjust function, high accuracy, good repeatability, accurate limit, single phase self-locking, reliable and safe.
- 8.Compactable with many radio remote controls, card reader, GSM switch etc.
- 9.Efficient obstacle detection device: non-contact infra red detection or contact brake mode can be choose.
- 10.Machine adopts ultra quite design technology; the noise is less than 52 DB.
